Reading groundwater observations

This notebook introduces how to use the hydropandas package to read, process and visualise groundwater data from Dino and Bro databases.

Notebook contents

1. GroundwaterObs

2. ObsCollection

3. Read ObsCollections

4. Write ObsCollections

import hydropandas as hpd

import logging
from IPython.display import HTML

import logging

hpd.util.get_color_logger("INFO")

GroundwaterObs

The hydropandas package has several functions to read groundwater observations at a measurement well. These include reading data from: - dino (from csv-files). - bro (using the bro-api) - fews (xml dumps from the fews database) - wiski (dumps from the wiski database)

# reading a dino csv file
path = "data/Grondwaterstanden_Put/B33F0080001_1.csv"
gw_dino = hpd.GroundwaterObs.from_dino(path=path)
gw_dino

INFO:hydropandas.io.dino:reading -> B33F0080001_1

# reading the same filter from using the bro api. Specify a groundwater monitoring id (GMW00...) and a filter number (1)
gw_bro = hpd.GroundwaterObs.from_bro("GMW000000041261", 1)

INFO:hydropandas.io.bro:reading bro_id GMW000000041261
INFO:hydropandas.io.bro:GLD000000009378 contains 36 duplicates (of 66447). Keeping only first values.

Now we have an GroundwaterObs object named gw_bro and gw_dino. Both objects are from the same measurement well in different databases. A GroundwaterObs object inherits from a pandas DataFrame and has the same attributes and methods.

gw_bro.describe()

	values
count	66411.000000
mean	5.562630
std	0.222262
min	4.913000
25%	5.380000
50%	5.569000
75%	5.721000
max	6.397000

gw_bro

	values	qualifier
1972-11-28 00:00:00	5.763	goedgekeurd
1972-12-07 00:00:00	5.773	goedgekeurd
1972-12-14 00:00:00	5.703	goedgekeurd
1972-12-21 00:00:00	5.643	goedgekeurd
1972-12-28 00:00:00	5.573	goedgekeurd
...	...	...
2021-10-08 07:00:00	5.486	goedgekeurd
2021-10-08 08:00:00	5.485	goedgekeurd
2021-10-08 09:00:00	5.486	goedgekeurd
2021-10-08 09:47:00	5.491	goedgekeurd
2021-10-08 10:00:00	5.485	goedgekeurd

66411 rows × 2 columns

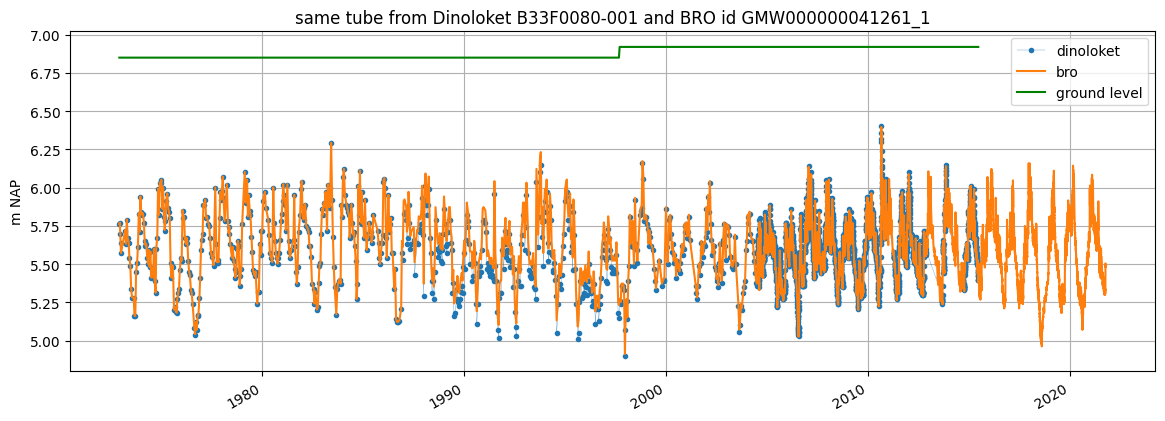

ax = gw_dino["stand_m_tov_nap"].plot(
    label="dinoloket", figsize=(14, 5), legend=True, marker=".", lw=0.2
)
gw_bro["values"].plot(ax=ax, label="bro", legend=True, ylabel=gw_bro.unit)
gw_dino["ground_level"].plot(
    ax=ax,
    label="ground level",
    legend=True,
    grid=True,
    color="green",
    ylabel=gw_dino.unit,
)

ax.set_title(f"same tube from Dinoloket {gw_dino.name} and BRO id {gw_bro.name}")

GroundwaterObs Attributes

Besides the standard DataFrame attributes a GroundwaterObs has the following additional attributes: - x, y: x- and y-coordinates of the observation point - name: str with the name - filename: str with the filename (only available when the data was loaded from a file) - monitoring_well: the name of the monitoring_well. One monitoring well can have multiple tubes. - tube_nr: the number of the tube. The combination of monitoring_well and tube_nr should be unique - screen_top: the top of the tube screen (bovenkant filter in Dutch) - screen_bottom: the bottom of the tube screen (onderkant filter in Dutch) - ground_level: surface level (maaiveld in Dutch) - tube_top: the top of the tube - metadata_available: boolean indicating whether metadata is available for this observation point - meta: dictionary with additional metadata

When dowloading from Dinoloket all levels are in meters NAP.

print(gw_bro)

GroundwaterObs GMW000000041261_1
-----metadata------
name : GMW000000041261_1
x : 213268.0
y : 473910.0
filename :
source : BRO
unit : m NAP
monitoring_well : GMW000000041261
tube_nr : 1
screen_top : 4.05
screen_bottom : 3.05
ground_level : 6.9
tube_top : 7.173
metadata_available : True

-----time series------
                     values    qualifier
1972-11-28 00:00:00   5.763  goedgekeurd
1972-12-07 00:00:00   5.773  goedgekeurd
1972-12-14 00:00:00   5.703  goedgekeurd
1972-12-21 00:00:00   5.643  goedgekeurd
1972-12-28 00:00:00   5.573  goedgekeurd
...                     ...          ...
2021-10-08 07:00:00   5.486  goedgekeurd
2021-10-08 08:00:00   5.485  goedgekeurd
2021-10-08 09:00:00   5.486  goedgekeurd
2021-10-08 09:47:00   5.491  goedgekeurd
2021-10-08 10:00:00   5.485  goedgekeurd

[66411 rows x 2 columns]

GroundwaterObs methods

Besides the standard DataFrame methods a GroundwaterObs has additional methods. This methods are accessible through submodules: - geo.get_lat_lon(), to obtain latitude and longitude - gwobs.get_modellayer(), to obtain the modellayer of a modflow model using the filter depth - stats.get_seasonal_stat(), to obtain seasonal statistics - stats.obs_per_year(), to obtain the number of observations per year - stats.consecutive_obs_years(), to obtain the number of consecutive years with more than a minimum number of observations - plots.interactive_plot(), to obtain a bokeh plot

Get latitude and longitude with gw.geo.get_lat_lon():

print(f"latitude and longitude -> {gw_bro.geo.get_lat_lon()}")

latitude and longitude -> (52.25014706738195, 6.24047994529121)

gw_bro.stats.get_seasonal_stat(stat="mean")

	winter_mean	summer_mean
GMW000000041261_1	5.723791	5.40682

p = gw_bro.plots.interactive_plot("figure")
HTML(filename="figure/{}.html".format(gw_bro.name))

ObsCollections

ObsCollections are a combination of multiple observation objects. The easiest way to construct an ObsCollections is from a list of observation objects.

path1 = "data/Grondwaterstanden_Put/B33F0080001_1.csv"
path2 = "data/Grondwaterstanden_Put/B33F0133001_1.csv"
gw1 = hpd.GroundwaterObs.from_dino(path=path1)
gw2 = hpd.GroundwaterObs.from_dino(path=path2)

# create ObsCollection
oc = hpd.ObsCollection([gw1, gw2], name="Dino groundwater")
oc

INFO:hydropandas.io.dino:reading -> B33F0080001_1
INFO:hydropandas.io.dino:reading -> B33F0133001_1

	x	y	filename	source	unit	monitoring_well	tube_nr	screen_top	screen_bottom	ground_level	tube_top	metadata_available	obs
name
B33F0080-001	213260.0	473900.0	B33F0080001_1	dino	m NAP	B33F0080	1.0	3.85	2.85	6.92	7.18	True	GroundwaterObs B33F0080-001 -----metadata-----...
B33F0133-001	210400.0	473366.0	B33F0133001_1	dino	m NAP	B33F0133	1.0	-67.50	-70.00	6.50	7.14	True	GroundwaterObs B33F0133-001 -----metadata-----...

Now we have an ObsCollection object named oc. The ObsCollection contains all the data from the two GroundwaterObs objects. It also stores a reference to the GroundwaterObs objects in the ‘obs’ column. An ObsCollection object also inherits from a pandas DataFrame and has the same attributes and methods.

# get columns
oc.columns

Index(['x', 'y', 'filename', 'source', 'unit', 'monitoring_well', 'tube_nr',
       'screen_top', 'screen_bottom', 'ground_level', 'tube_top',
       'metadata_available', 'obs'],
      dtype='object')

# get individual GroundwaterObs object from an ObsCollection
o = oc.loc["B33F0133-001", "obs"]
o

	stand_m_tov_nap	locatie	filternummer	stand_cm_tov_mp	stand_cm_tov_mv	stand_cm_tov_nap	bijzonderheid	opmerking	tube_top
1989-12-14	1.20	B33F0133	1	582.0	530.0	120.0	NaN	NaN	7.02
1990-01-15	1.57	B33F0133	1	545.0	493.0	157.0	NaN	NaN	7.02
1990-01-29	1.70	B33F0133	1	532.0	480.0	170.0	NaN	NaN	7.02
1990-02-14	1.53	B33F0133	1	549.0	497.0	153.0	NaN	NaN	7.02
1990-03-01	1.56	B33F0133	1	546.0	494.0	156.0	NaN	NaN	7.02
...	...	...	...	...	...	...	...	...	...
2011-01-14	3.57	B33F0133	1	357.0	293.0	357.0	NaN	NaN	7.14
2011-01-15	3.60	B33F0133	1	354.0	290.0	360.0	NaN	NaN	7.14
2011-01-16	3.61	B33F0133	1	353.0	289.0	361.0	NaN	NaN	7.14
2011-01-17	3.61	B33F0133	1	353.0	289.0	361.0	NaN	NaN	7.14
2011-01-18	3.63	B33F0133	1	351.0	287.0	363.0	NaN	NaN	7.14

2212 rows × 9 columns

# get statistics
oc.describe()

	x	y	tube_nr	screen_top	screen_bottom	ground_level	tube_top
count	2.000000	2.000000	2.0	2.000000	2.000000	2.000000	2.000000
mean	211830.000000	473633.000000	1.0	-31.825000	-33.575000	6.710000	7.160000
std	2022.325394	377.595021	0.0	50.452069	51.512729	0.296985	0.028284
min	210400.000000	473366.000000	1.0	-67.500000	-70.000000	6.500000	7.140000
25%	211115.000000	473499.500000	1.0	-49.662500	-51.787500	6.605000	7.150000
50%	211830.000000	473633.000000	1.0	-31.825000	-33.575000	6.710000	7.160000
75%	212545.000000	473766.500000	1.0	-13.987500	-15.362500	6.815000	7.170000
max	213260.000000	473900.000000	1.0	3.850000	2.850000	6.920000	7.180000

ObsCollection methods

Besides the methods of a pandas DataFrame an ObsCollection has additional methods stored in submodules.

geo: - get_bounding_box -> get a tuple with (xmin, ymin, xmax, ymax) - get_extent -> get a tule with (xmin, xmax, ymin, ymax) - get_lat_lon -> to get the lattitudes and longitudes from the x and y coordinates - within_polygon -> to select only the observations that lie within a polygon

gwobs: - set_tube_nr -> to set the tube numbers based on the tube screen depth when there are multiple tubes at one monitoring well - set_tube_nr_monitoring_well -> find out which observations are at the same location with a different screen depth. Set monitoring_well and tube_nr attributes accordingly.

plots: - interactive_figures -> create bokeh figures for each observation point. - interactive_map -> create a folium map with observation points and bokeh figures for each observation point. - section_plot -> create a plot of multiple observations and a plot of the well layout.

stats: - get_first_last_obs_date() -> get the first and the last date of the observations for each observation point - get_no_of_observations() -> get the number of observations - get_seasonal_stat() -> get seasonal stats of the observations

E.g. get the bounding box with gw.geo.get_bounding_box():

print(f"bounding box -> {oc.geo.get_bounding_box()}")

bounding box -> (210400.0, 473366.0, 213260.0, 473900.0)

oc.geo.set_lat_lon()
oc.plots.interactive_map(plot_dir="figure")

Make this Notebook Trusted to load map: File -> Trust Notebook

We can get an overview of the well layout and observations via plots.section_plot:

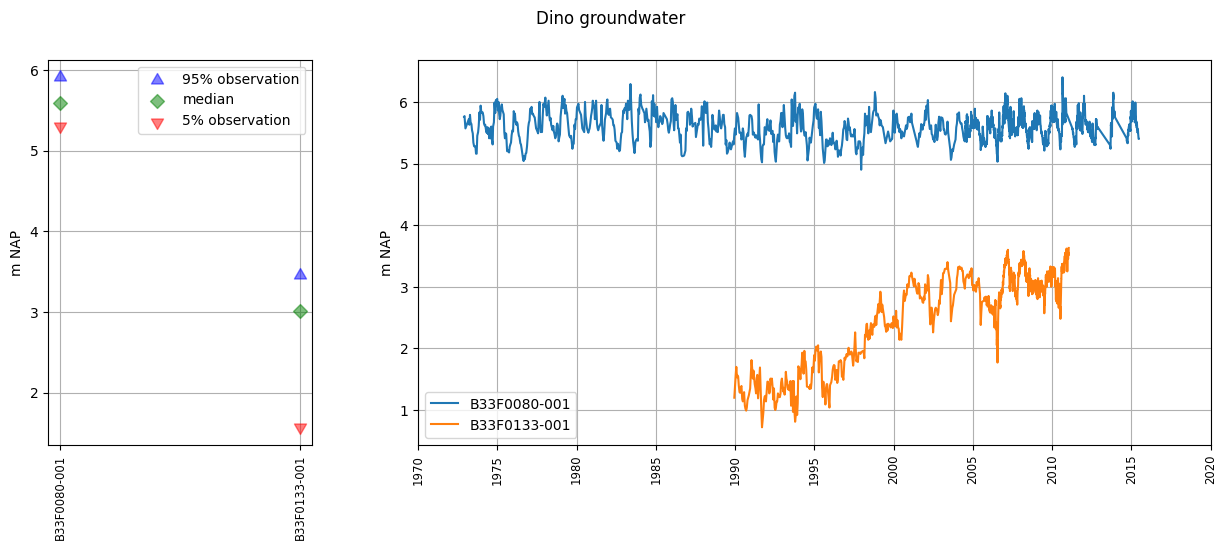

oc.plots.section_plot()

INFO:hydropandas.extensions.plots:created sectionplot -> B33F0133-001

ObsCollection Attributes

An ObsCollection also has additional attributes: - name, a str with the name of the collection - meta, a dictionary with additional metadata

print(f"name is -> {oc.name}")
print(f"meta is -> {oc.meta}")

name is -> Dino groundwater
meta is -> {}

Read ObsCollections

Instead of creating the ObsCollection from a list of observation objects. It is also possible to read the data from a source into an ObsCollection at once. The following sources can be read as an ObsCollection:

• bro (using the api)

• dino (from files)

• fews (dumps from the fews database)

• wiski (dumps from the wiski database)

• menyanthes (a .men file)

• modflow (from the heads of a modflow model)

• imod (from the heads of an imod model)

This notebook won’t go into detail on all the sources that can be read. Only the two options for reading data from Dino and BRO are shown below.

# read using a .zip file with data
dinozip = "data/dino.zip"
dino_gw = hpd.read_dino(dirname=dinozip, keep_all_obs=False)
dino_gw

INFO:hydropandas.io.dino:reading -> Grondwaterstanden_Put/B02H0092001_1.csv
WARNING:hydropandas.io.dino:no NAP measurements available -> Grondwaterstanden_Put/B02H0092001_1.csv
INFO:hydropandas.io.dino:reading -> Grondwaterstanden_Put/B02H1007001_1.csv
WARNING:hydropandas.io.dino:no NAP measurements available -> Grondwaterstanden_Put/B02H1007001_1.csv
INFO:hydropandas.io.dino:reading -> Grondwaterstanden_Put/B04D0032002_1.csv
WARNING:hydropandas.io.dino:could not read metadata -> Grondwaterstanden_Put/B04D0032002_1.csv
WARNING:hydropandas.io.dino:no NAP measurements available -> Grondwaterstanden_Put/B04D0032002_1.csv
INFO:root:not added to collection -> Grondwaterstanden_Put/B04D0032002_1.csv
INFO:hydropandas.io.dino:reading -> Grondwaterstanden_Put/B27D0260001_1.csv
WARNING:hydropandas.io.dino:could not read metadata -> Grondwaterstanden_Put/B27D0260001_1.csv
WARNING:hydropandas.io.dino:no NAP measurements available -> Grondwaterstanden_Put/B27D0260001_1.csv
INFO:root:not added to collection -> Grondwaterstanden_Put/B27D0260001_1.csv
INFO:hydropandas.io.dino:reading -> Grondwaterstanden_Put/B33F0080001_1.csv
INFO:hydropandas.io.dino:reading -> Grondwaterstanden_Put/B33F0080002_1.csv

INFO:hydropandas.io.dino:reading -> Grondwaterstanden_Put/B33F0133001_1.csv
INFO:hydropandas.io.dino:reading -> Grondwaterstanden_Put/B33F0133002_1.csv
INFO:hydropandas.io.dino:reading -> Grondwaterstanden_Put/B37A0112001_1.csv
WARNING:hydropandas.io.dino:could not read metadata -> Grondwaterstanden_Put/B37A0112001_1.csv
WARNING:hydropandas.io.dino:could not read measurements -> Grondwaterstanden_Put/B37A0112001_1.csv
INFO:root:not added to collection -> Grondwaterstanden_Put/B37A0112001_1.csv
INFO:hydropandas.io.dino:reading -> Grondwaterstanden_Put/B42B0003001_1.csv
INFO:hydropandas.io.dino:reading -> Grondwaterstanden_Put/B42B0003002_1.csv
INFO:hydropandas.io.dino:reading -> Grondwaterstanden_Put/B42B0003003_1.csv
INFO:hydropandas.io.dino:reading -> Grondwaterstanden_Put/B42B0003004_1.csv
INFO:hydropandas.io.dino:reading -> Grondwaterstanden_Put/B58A0092004_1.csv
INFO:hydropandas.io.dino:reading -> Grondwaterstanden_Put/B58A0092005_1.csv
INFO:hydropandas.io.dino:reading -> Grondwaterstanden_Put/B58A0102001_1.csv
INFO:hydropandas.io.dino:reading -> Grondwaterstanden_Put/B58A0167001_1.csv
INFO:hydropandas.io.dino:reading -> Grondwaterstanden_Put/B58A0212001_1.csv
INFO:hydropandas.io.dino:reading -> Grondwaterstanden_Put/B22D0155001_1.csv

	x	y	filename	source	unit	monitoring_well	tube_nr	screen_top	screen_bottom	ground_level	tube_top	metadata_available	obs
name
B02H0092-001	219890.0	600030.0	Grondwaterstanden_Put/B02H0092001_1.csv	dino	m NAP	B02H0092	1.0	NaN	NaN	NaN	NaN	True	GroundwaterObs B02H0092-001 -----metadata-----...
B02H1007-001	219661.0	600632.0	Grondwaterstanden_Put/B02H1007001_1.csv	dino	m NAP	B02H1007	1.0	NaN	NaN	1.92	NaN	True	GroundwaterObs B02H1007-001 -----metadata-----...
B33F0080-001	213260.0	473900.0	Grondwaterstanden_Put/B33F0080001_1.csv	dino	m NAP	B33F0080	1.0	3.85	2.85	6.92	7.18	True	GroundwaterObs B33F0080-001 -----metadata-----...
B33F0080-002	213260.0	473900.0	Grondwaterstanden_Put/B33F0080002_1.csv	dino	m NAP	B33F0080	2.0	-10.15	-12.15	6.92	7.17	True	GroundwaterObs B33F0080-002 -----metadata-----...
B33F0133-001	210400.0	473366.0	Grondwaterstanden_Put/B33F0133001_1.csv	dino	m NAP	B33F0133	1.0	-67.50	-70.00	6.50	7.14	True	GroundwaterObs B33F0133-001 -----metadata-----...
B33F0133-002	210400.0	473366.0	Grondwaterstanden_Put/B33F0133002_1.csv	dino	m NAP	B33F0133	2.0	-104.20	-106.20	6.50	7.12	True	GroundwaterObs B33F0133-002 -----metadata-----...
B42B0003-001	38165.0	413785.0	Grondwaterstanden_Put/B42B0003001_1.csv	dino	m NAP	B42B0003	1.0	-2.00	-3.00	6.50	6.99	True	GroundwaterObs B42B0003-001 -----metadata-----...
B42B0003-002	38165.0	413785.0	Grondwaterstanden_Put/B42B0003002_1.csv	dino	m NAP	B42B0003	2.0	-34.00	-35.00	6.50	6.99	True	GroundwaterObs B42B0003-002 -----metadata-----...
B42B0003-003	38165.0	413785.0	Grondwaterstanden_Put/B42B0003003_1.csv	dino	m NAP	B42B0003	3.0	-60.00	-61.00	6.50	6.95	True	GroundwaterObs B42B0003-003 -----metadata-----...
B42B0003-004	38165.0	413785.0	Grondwaterstanden_Put/B42B0003004_1.csv	dino	m NAP	B42B0003	4.0	-107.00	-108.00	6.50	6.97	True	GroundwaterObs B42B0003-004 -----metadata-----...
B58A0092-004	186924.0	372026.0	Grondwaterstanden_Put/B58A0092004_1.csv	dino	m NAP	B58A0092	4.0	-115.23	-117.23	29.85	29.61	True	GroundwaterObs B58A0092-004 -----metadata-----...
B58A0092-005	186924.0	372026.0	Grondwaterstanden_Put/B58A0092005_1.csv	dino	m NAP	B58A0092	5.0	-134.23	-137.23	29.84	29.62	True	GroundwaterObs B58A0092-005 -----metadata-----...
B58A0102-001	187900.0	373025.0	Grondwaterstanden_Put/B58A0102001_1.csv	dino	m NAP	B58A0102	1.0	-3.35	-8.35	29.65	29.73	True	GroundwaterObs B58A0102-001 -----metadata-----...
B58A0167-001	185745.0	371095.0	Grondwaterstanden_Put/B58A0167001_1.csv	dino	m NAP	B58A0167	1.0	23.33	22.33	30.50	30.21	True	GroundwaterObs B58A0167-001 -----metadata-----...
B58A0212-001	183600.0	373020.0	Grondwaterstanden_Put/B58A0212001_1.csv	dino	m NAP	B58A0212	1.0	26.03	25.53	28.49	28.53	True	GroundwaterObs B58A0212-001 -----metadata-----...
B22D0155-001	233830.0	502530.0	Grondwaterstanden_Put/B22D0155001_1.csv	dino	m NAP	B22D0155	1.0	7.80	6.80	8.91	9.94	True	GroundwaterObs B22D0155-001 -----metadata-----...

# read from bro using an extent (Schoonhoven zuid-west)

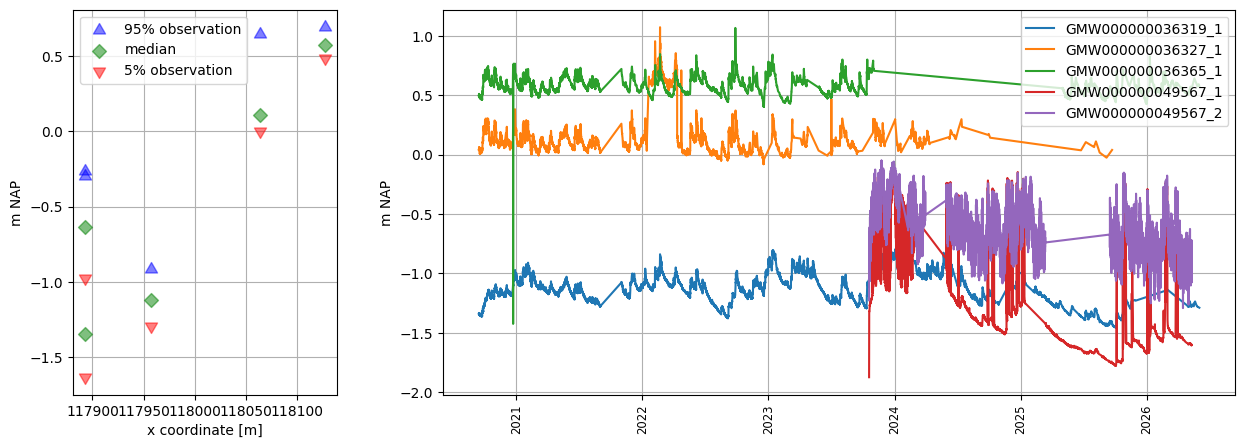

oc = hpd.read_bro(extent=(117850, 118180, 439550, 439900), keep_all_obs=False)
oc

  0%|          | 0/4 [00:00<?, ?it/s]

INFO:hydropandas.io.bro:reading bro_id GMW000000036319

INFO:hydropandas.io.bro:GLD000000012818 contains 720 duplicates (of 22303). Keeping only first values.

 25%|██▌       | 1/4 [00:04<00:14,  4.84s/it]

INFO:hydropandas.io.bro:reading bro_id GMW000000036327
INFO:hydropandas.io.bro:GLD000000012821 contains 720 duplicates (of 17856). Keeping only first values.

 50%|█████     | 2/4 [00:08<00:08,  4.02s/it]

INFO:hydropandas.io.bro:reading bro_id GMW000000036365
INFO:hydropandas.io.bro:GLD000000012908 contains 329 duplicates (of 12793). Keeping only first values.

 75%|███████▌  | 3/4 [00:11<00:03,  3.58s/it]

INFO:hydropandas.io.bro:reading bro_id GMW000000049567
INFO:hydropandas.io.bro:no groundwater level dossier for GMW000000049567 and tube number 1
WARNING:hydropandas.io.bro:no measurements found for gmw_id GMW000000049567 and tube number1
INFO:hydropandas.io.bro:reading bro_id GMW000000049567
INFO:hydropandas.io.bro:no groundwater level dossier for GMW000000049567 and tube number 2
WARNING:hydropandas.io.bro:no measurements found for gmw_id GMW000000049567 and tube number2

100%|██████████| 4/4 [00:12<00:00,  3.03s/it]

	x	y	filename	source	unit	monitoring_well	tube_nr	screen_top	screen_bottom	ground_level	tube_top	metadata_available	obs
name
GMW000000036319_1	117957.010	439698.236		BRO	m NAP	GMW000000036319	1	-1.721	-2.721	-0.501	-0.621	True	GroundwaterObs GMW000000036319_1 -----metadata...
GMW000000036327_1	118064.196	439799.968		BRO	m NAP	GMW000000036327	1	-0.833	-1.833	0.856	0.716	True	GroundwaterObs GMW000000036327_1 -----metadata...
GMW000000036365_1	118127.470	439683.136		BRO	m NAP	GMW000000036365	1	-0.429	-1.428	1.371	1.221	True	GroundwaterObs GMW000000036365_1 -----metadata...

# plot wells, use x-coordinate in section plot
oc.plots.section_plot(section_colname_x="x", section_label_x="x coordinate [m]")

INFO:hydropandas.extensions.plots:created sectionplot -> GMW000000036365_1

Write ObsCollections

Sometimes reading ObsCollections can be time consuming, especially when you need to download a lot of data. It can be worth to save the ObsCollection to a file and read it later instead of going through the full read process again. There are two basic ways to do this: 1. Write the ObsCollection to a pickle 2. Write the ObsCollection to an excel file

	pickle	excel
extension	.pklz	.xlsx
human readable	No	Yes
data lost	None	Some metadata, see hpd.to_excel docstring

Pickling is used to store Python objects into a binary file that is not human readable. Writing and reading a pickle is fast and returns an exact copy of the ObsCollection. Exchanging pickles between machines can be troublesome because of machine settings and differences between package versions.

oc.to_pickle("test.pklz")

oc_pickled = hpd.read_pickle("test.pklz")

An ObsCollection can be written to Excel file. An Excel file with multiple sheets is created. One sheet with the metdata and another sheet for each observation in the ObsCollection. Writing to an excel file is considerably slower than writing a pickle but it does give you a human readable file format that can be easily exchanged between machines.

oc.to_excel("test.xlsx")

WARNING:py.warnings:C:\Users\oebbe\02_python\hydropandas\hydropandas\obs_collection.py:1933: UserWarning: Pandas requires version '1.4.3' or newer of 'xlsxwriter' (version '1.3.8' currently installed).
  with pd.ExcelWriter(path) as writer:

oc_excelled = hpd.read_excel("test.xlsx")
